Spokeshaves

Spokeshaves

Spokeshaves

Description

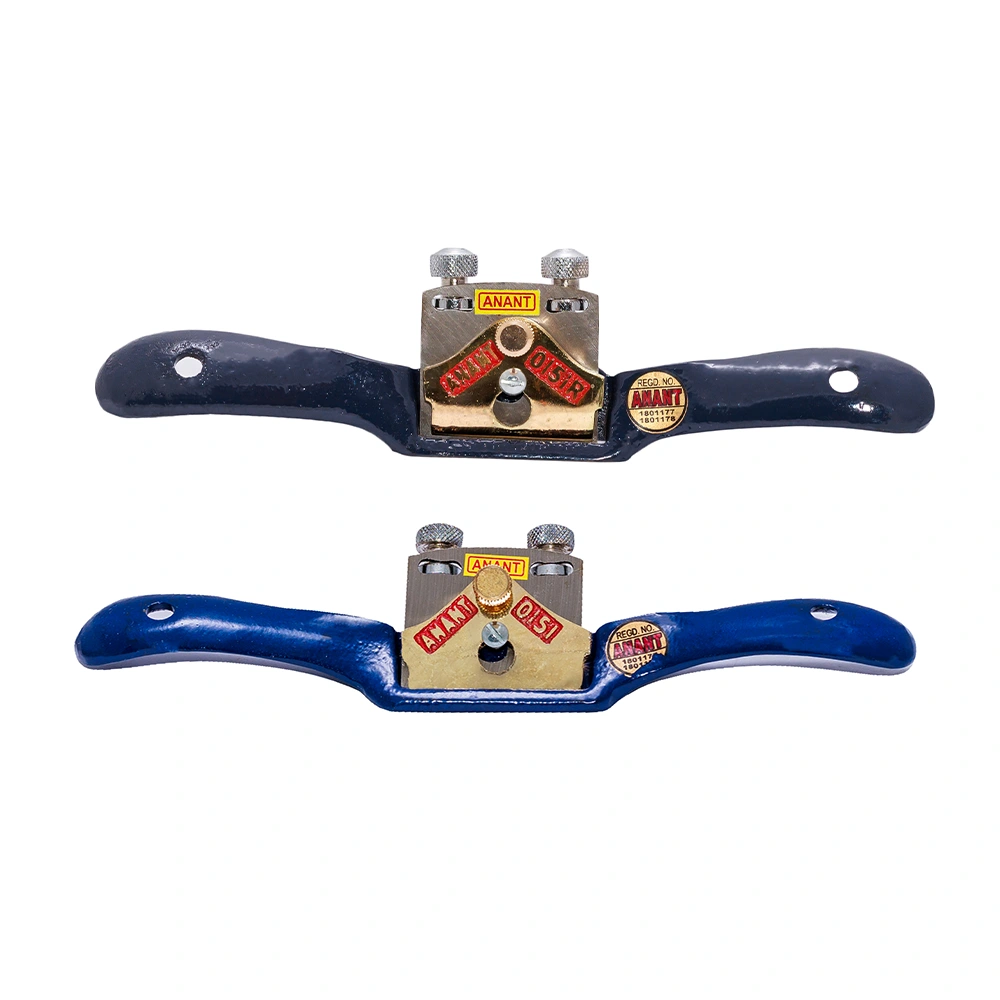

The spokeshave is a handy shaping tool useful on small curves, furniture legs etc; and provides a smooth plane-like finish. The wide range of spokeshaves caters for every requirement and is produced in two different types, (a) with flat face for use on convex curves, and (b) with round face for use on concave curves.
The choice of raised or flat handles is a matter of personal preference. All are fitted with double irons, and the combined cap iron and lever cap being secured either by means of a thumbscrew or a knurled screw according to type.

No. 0151 Flat Face, No. 0151R Round Face

  • Adjustable Cut Iron, Raised Handle Cast Iron Body

No. A151 Flat Face, No. A151R Round Face

  • Adjustable Cut Iron, Raised Handle Malleable Iron Body

No. A64 Flat Face

  • Straight Handle, Malleable Iron Body

Materials

  • Body : Nos. A151, A151R, A51, A51R, A63, A64, high grade malleable iron. Guaranteed against breakage. Nos. 0151, 0151R, 051, 051R, high grade cast iron
  • Cut Irons : High Carbon Steel.

Finish

  • Stove enamelled, Malleable iron red, cast iron ANANT blue.

Packing

  • Individually cartoned 051, 051R, 0151, 0151R, A51, A51R, A151 A151R four per master carton and A63 and A64 six per master carton.

No. 051 Flat Face, No. 051R Round Face

  • Raised Handle, Cast Iron Body

No. A51 Flat Face, No. A51R Round Face

  • Raised Handle, Malleable Iron Body

No. A63 Round Face

  • Straight Handle, Malleable Iron Body
Spokeshaves

With high grade malleable iron bodies.

Tool No. Type Length Width of Cut Iron Approx. Weight per carton
inches mm inches mm pounds grams.
 A151  Flat face 10 254 21/8 54 5 1875
 A151R  Round face 10 254 21/8 54 5 1875
 A51  Flat face 10 254 21/8 54 41/2 1690
 A51R  Round face 10 254 21/8 54 41/2 1690
 A63  Round face 9 229 13/4 45 3 1125
 A64  Flat face 9 229 13/4 45 3 1125
 0151  Flat face 10 254 21/8 54 5 1875
0 151R  Round face 10 254 21/8 54 5 1875
 051  Flat face 10 254 21/8 54 41/2 1690
051R  Round face 10 254 21/8 54 41/2 1690

Spare cut irons and parts are readily available.
