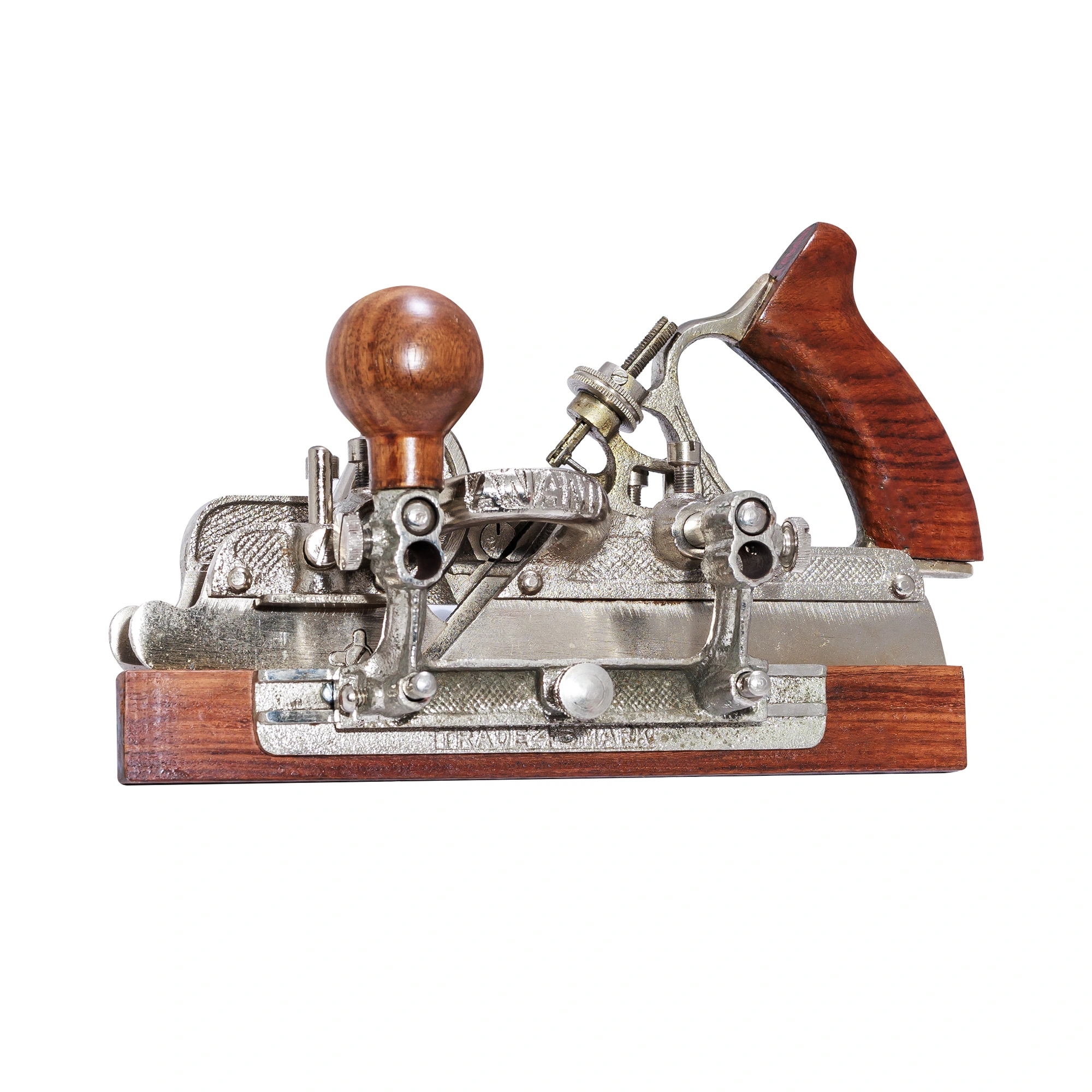

Multi - Planes No. A 45

Multi - Planes No. A 45

Description

The many outstanding features of the ANANT multiplane include: Screw adjustment to cut iron, also to fence and depth gauge, two sets of fence arms (long and short), beading stop, slitting cutter, sliding section depth gauge, cam steady, and spurs for cross grain work.
23 cut irons are supplied with the plane as standard equipment. A comprehensive instruction booklets supplied with each plane.

• Ploughing
• Dadoing
• Beading
• Centre Beading
• Rabbeting and Fillistering
• Match Planing
• Sash Planing
• Slitting

Materials

• Body and Sliding Section : High grade cast iron.
• Cut Iron : High Carbon Steel.
• Fence : Cast iron with wood face. Handle and knob Selected hardwood/ High quality Plastic.

Finish

• Plated all over.

Packing

• Individually packed in a varnished wooden box.
• Length 107/8" (277 mm). Approx. weight 10 pounds (4.54 kg).
• Spare cut irons and parts are readily available.

NO. A45 MULTI - PLANE STANDARD CUT IRONS

• A-L : Plough and Dado Cut Irons
• M : Fillister Cut Irons
• N-T : Beading Cut Irons
• U : Sash Cut Irons
• V & W : Matching Cut Irons
• X : Slitting Cut Irons
