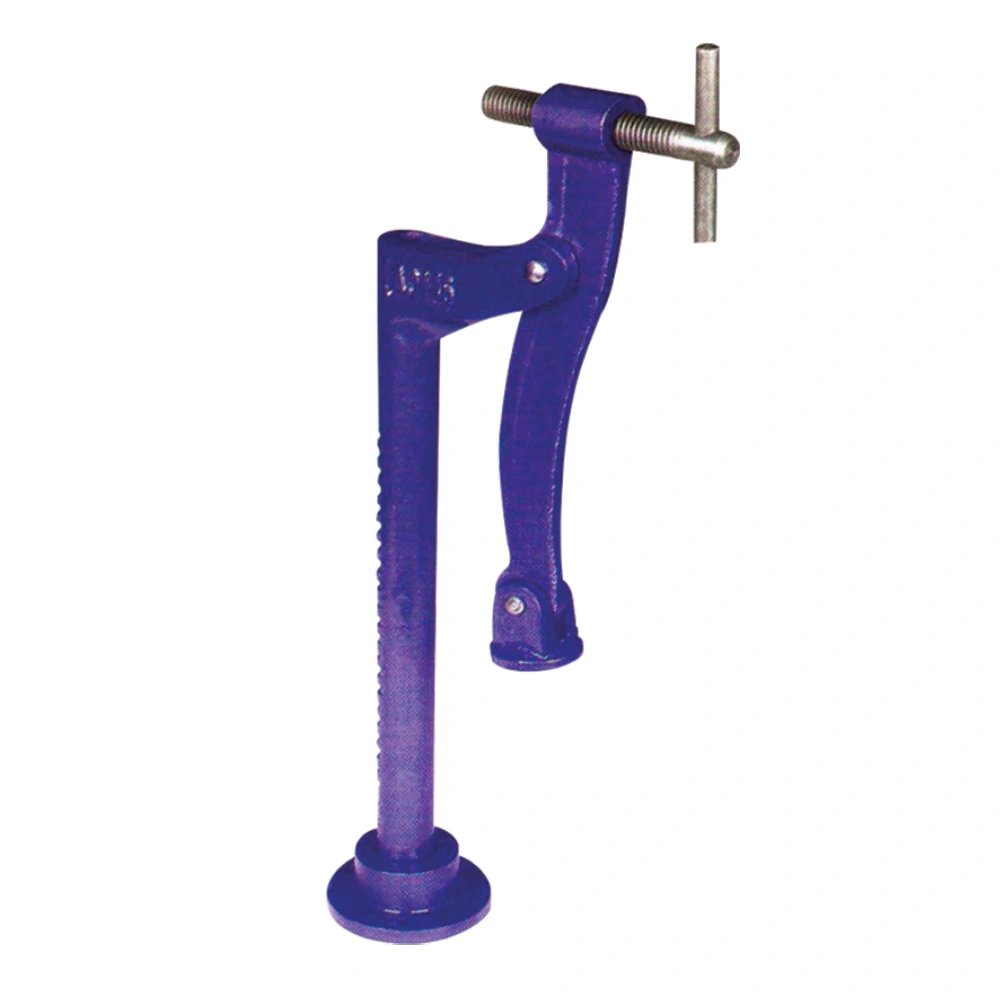

Bench Hold Fast

Bench Hold Fast

Description

The ANANT Bench Hold Fast works much like traditional work bench hold downs by clamping work directly to the bench wherever you can drill a 15/16" hole, but it is much more effective than the single piece iron types. Once you have positioned the hold fast over your project, an acme screw forces a pivot arm down with enormous pressure exactly where you need it. The clamp pad also pivot to accomodate odd shaped parts. You will want to use some scrap wood or glue a piece of leather to this pad to keep it from marring your work.

The ANANT Bench Holdfast has several mounting options. If your bench top is at least 2 1/4" thick and made of hardwood, just drill a hole wherever you like. For softwood and thinner tops, and iron flange is included to mount either flush with the top of your bench if it is at least 2" thick or surface mounted to the underside if it's thinner. Of course, you could choose to use the flange on other side of hardwood benches as well. Throat capacity and maximum height are 8".

Materials

Body: High grade SG Iron.

Finish

Enamelled ANANT Blue.

Packing

Individually packed in carton box.
